The sensors are connected to the wireless mesh network via the Smart Driver or the Advanced Load Controller, or independently via the AMBR Border Router and our proprietary 6LoWireless protocol. When connected, the sensors can detect occupancy and vacancy (motion), available daylight, temperature and humidity levels within the sensing areas.

Part numberSensor1Sensor2
Product dimensions2 11/16’’ (68.6 mm) w w/tip
2 ¼’’ (57.5 mm) w
1 11/16’’ (42.9mm) h
1 ¼’’ (32.35mm) d
1 ½’’ (38.2mm) w w/tip
1 ⅛’’ (28mm) w
1 7/16’’ (36.4mm) h
1’’ (25.4mm) d
ColorWhite
FinishMatte
Item package quantity1 unit
Range200 feet to the nearest node
Temperature Range-20°F to +100°F (-28°C to 37°C)
Input24VDC
Temperature Accuracy±0.9°F from 59°F to 104°F (±0.5°C from 15°C to 40°C)
Humidity Accuracy±3.5% rH from 20% to 80% rH
Detection radius5 meters
Conductors2 core connect between 9-30VDC
Communication6LoWireless
ConnectionRJ12 port

Amatis 10-year warranty:

All Amatis LED lighting products and controls come with a 10-year parts warranty, as well as labor per product up to a maximum of 50% of the material price for parts being replaced*. All parts are UL certified. Lamps are DLC certified, therefore eligible for utility incentives. We warrant that our products will be free from defects in material and workmanship for a 10-year period from the date of purchase. Defective products under warranty will be replaced with an equal or higher quality product.

*The Amatis Border Router (AMBR) connected to your affected device must have remained connected to the Amatis cloud via the Internet or cellular connection from the start of site commissioning to date of return request.

  • Non-connected systems are eligible for a 5-year limited warranty (1825 days) from shipment date, with the same remaining criteria.
View Full Warranty

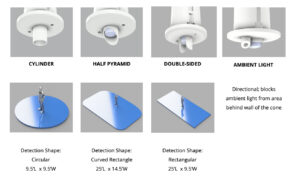

What are the detection regions of the multisensors?

Detection regions for both Sensor1 and Sensor2 are the same.
